F-22 HO Linear LED, Touchsensor Switch, Cool White/Blue-IL7367

• F-22 Linear LED, Touchsensor Switch, Cool White/Blue
• F-22 Linear LED, Touchsensor Switch, Cool White/Blue, Clear Housing, High Output, 10-30VDC, 8W

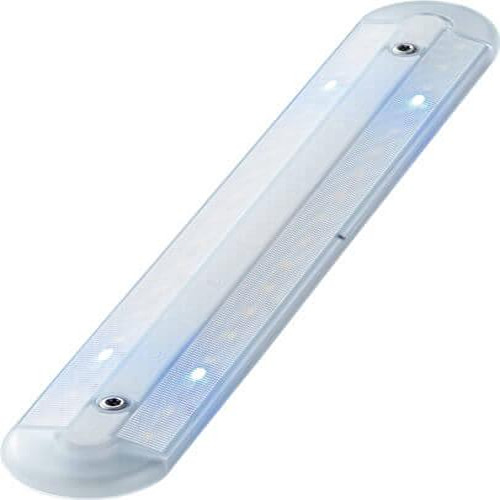

• The F-22 HO is an extremely low profile touch activated linear LED fixture featuring dual color operation. Installation could not be more simple, as the F-22 is completely surface-mounted, only requiring two screws for fastening. Turning the fixture on and off and/or switching from cool white to blue LED is achieved via photo sensors which respond to finger touch.

Features & Benefits

• Extreme low-profile surface-mount water-proof design
• Illuminated touch sensor switch
• Dual LED color (cool white/blue) operation
• Non-glare semi-transparent PCB lens

Specifications:

• Multi-voltage: 10-30VDC
• Maintenance free: No bulbs to change
• Low power consumption
• Finish: Translucent
• Housing Material: UV Stabilized Polycarbonate
• Lens Material: UV Stabilized Polycarbonate
• Dimensions (L x W x H): 10.63 x 1.57 x 0.31 in. (270 x 40 x 8 mm)
• Voltage Input Range: 10-30VDC
• Power Consumption (Watts): 8W
• Beam Angle (FWHM): 117°
• Luminous Flux: 275 lms
• Correlated Color Temperature (CCT): 5700K, White
• Color Rendering Index (CRI): 75
• Lifetime Hours (L70): 35,000 hrs
• Electrical Protections: Reverse Polarity, Transients, EMI
• Integral Switch: Yes (Touch Sensor)
• Mounting Method: Surface-mount (with screws)
• Ingress Protection: IP67
• Manufacturer: Frensch
• Warranty: 3 Years

ATTENTION CALIFORNIA RESIDENTS

WARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
