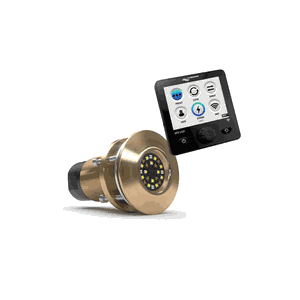

Lumishore TIX403-CCP Under Water Light - LM600336

EOS Color-Change

• Includes 1 meter of DMX cable assembly for quick connect to an existing TIX403 EOS Color Changing System
• Smallest Thru-Hull EOS (color changing) fixture
• Flush-fit, suitable for transom, hull side, or bottom mounting
• Recommended for boats up to 30 - 60ft
• Enjoy 6 x preset colors, color cycle, scenes, sweep, mix, brightness control, & strobe
• The STV Controller provides exclusive"Sound-To-Light" integration with on-board audio system
• Advanced light engine designed with ATRB (Active Thermal Roll-Back)
• 9,000 lumens (4,000 fixture lumens)
• The perfect"Swimming Pool" effect - full 110dg beam angle
• Battery Low Voltage warning system

• Housing Finish/Material: Marine grade aluminum bronze
• Trim Ring (Bezel) Finish/Material: High conductivity marine grade aluminum-bronze
• Lens Material: Toughened BK7 Borosilicate
• Trim Ring (Bezel) Dimensions: 3.46" (88mm) x 0.31" (8mm) profile height
• Cut-Out Dimensions: Requires 2.25" (57mm) hole size
• Recessed Depth: 5.35" (136mm)
• Dimensions: 2.56" (65mm) x 4" (100mm)
• Max Wattage: 36W
• Input Voltage: 10.5-31VDC
• Power Consumption: 3.6 Amps @ 12V, 1.8 Amps @ 24V
• Max Operating Temperature: Use ambient temps up to 125°F (50°C)
• Driver: Integrated, Interchangable Driver
• Output Color: RGBW
• Correlated Color Temperature (CCT): FUll spectrum color changing (RGBW)
• Luminous Flux: 9,000 lm (4,000 fixture lm)
• Beam Angle: 110°
• Lifetime Hours: 50,000 hrs
• Mounting Method: Thru-hull, bonding connection required
• Install Location: Transom, Bottom, Hull-Side
• Ingress Protection: IP68
• Class: III
• Electrical Protections: ATRB (automatic thermal rollback), surge, APR (auto power control), soft start, reverse polarity, in-rush current, power line noise suppression
• Certifications & Compliance: CE, ROHS, Rina, DNV-GL, Lloyd's Type Approval, ABS
• Manufacturer: Lumishore
• Warranty: 3 Years
