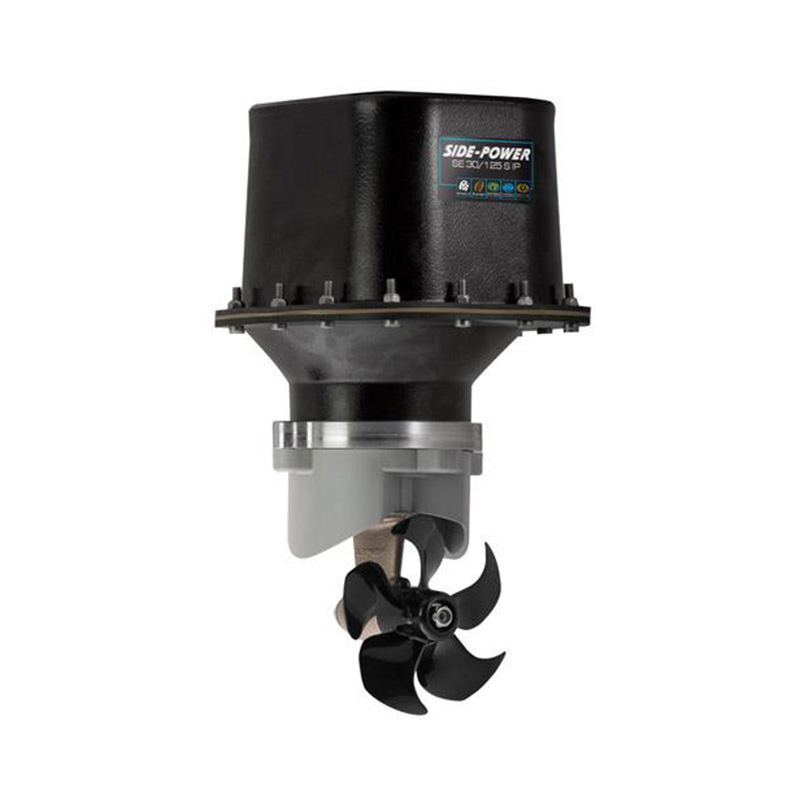

Side-Power Bow Thruster SE30/125S-IP, 12V, Single Prop Thruster
Click image to enlarge

Side-Power Bow Thruster SE30/125S-IP, 12V, Single Prop Thruster

  • Item No.: SE30-125S-IP
  • Manufacturer: Imtra Marine Products
Regular price: $3,714.50
Sale price:$2,907.00
Qty.:
Other Variations:
Side-Power Bow Thruster Single Prop ThrusterSide-Power Bow Thruster Single Prop Thruster | $1,422.00Side-Power Bow Thruster, 12V, Single Prop ThrusterSide-Power Bow Thruster, 12V, Single Prop Thruster | $4,464.00Side-Power Bow Thruster SE100/185T-12IP, 12V, Twin Props ThrusterSide-Power Bow Thruster SE100/185T-12IP, 12V, Twin Props Thruster | $5,868.00Side-Power Bow Thruster SE100/185T, 12V, Twin Props Thruster - SE100-185T-12VSide-Power Bow Thruster SE100/185T, 12V, Twin Props Thruster - SE100-185T-12V | $4,203.00Side-Power Bow Thruster SE100/185T, 24V, Twin Props ThrusterSide-Power Bow Thruster SE100/185T, 24V, Twin Props Thruster | $4,203.00
Pre-Sales questionnaire before buying a bow or stern thruster
Contact us Now
  • Description

Side-Power SE30/125S-IP Thruster (Sealed Gearleg) with IP Housing, 12V, Ignition Protected, 125mm


Features

  • Certified to ISO 8846 Ignition Protected standards
  • Water proof (not recommended for fully submerged mounting)
  • Sealed battery terminals on housing
  • Sealed control cable connection on housing
  • 9 meter control harness lead included
  • Ignition protected housing retains serviceability for inside components
  • Sealed gearleg
  • Splined shaft for prop attachment


Specification

  • Thrust @10.5VDC: 66 lbs (30kg)
  • Thrust @12VDC: 88 lbs (40 kg)
  • Typical Boat Size: 20-28' (6-8.5 m)
  • Tunnel Diameter (ID): 4.92" (125 mm)
  • Propulsion System: Single
  • Power @ 10.5V: 2 hp (1.5kw)
  • Voltage: 12VDC
  • Minimum Battery Capacity: 380 CCA SAE
  • Recommended Fuse Size: 150 Amp (SMANL150)
  • Manufacturer: Side-Power
  • Min Depth to Top of Tunnel: 2.48" (63mm)
  • Min Depth to Center of Tunnel: 4.92" (125mm)
