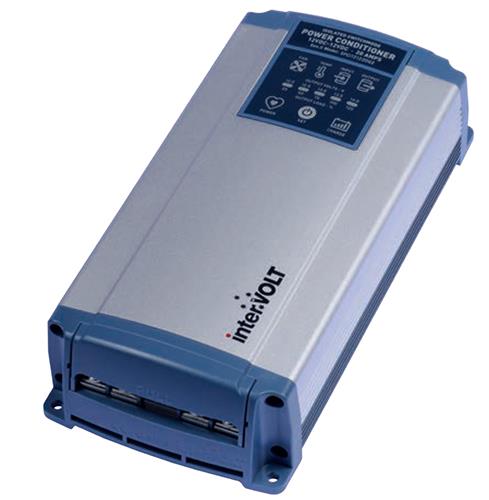

Intervolt Gen II Power Conditioner: 20A, 10.5-16VDC Input-12VDC

• Intervolt Gen II Power Conditioner: 20A, 10.5-16VDC Input-12VDC
• 12-14.4VDC Output (Adjustable)
• The InterVOLT SPCi Maxi Series Gen II power conditioners is a cutting edge product known for resolving many of the issues associated with DC power in vehicles and vessels. They are in fact a converter, stabilizer, isolator and regulator all built into a single innovative package. These devices feature galvanic isolation with no common connectivity between the input and output via positive or negative conductors. This means peace-of-mind when connecting sensitive and often expensive, high-end electronic equipment to the output. Other benefits include elimination of line interference, greater protection, better regulation and improved performance.
• The GEN II unit has digital over analogue topology which allows the installer/operator to control and monitor various functions and provides valuable feedback on the status of the connected load.
• The GEN II units are more compact due to multi-speed fan cooling and as a result no longer relies on convection for cooling.

Features:

• Unique operator interface for control and monitoring
• Galvanically isolated input to output - no common connectivity
• Handy charge mode for charging an auxiliary battery (2 stage)
• User adjustable output voltage from 12V to 14V (0.5V increments)
• Diagnostic indicator: stand by mode, load on, short circuit, temperature
• Remote operator control to turn unit on/off with signal current only
• Multifunction alarm output for fault and pre-emptive warnings
• Temperature and speed controlled internal cooling fan (Vapo bearing)
• Compact design and can be mounted vertically or horizontally
• Heavy duty termination with separate, removable terminal cover
• High quality assembly featuring marine grade hardware
• Conformably coated printed circuit board assembly

Specifications:

• Housing Finish/Material: Anodized 6063 aluminum, ABS/PC , stainless steel hardaware
• Dimensions (L x W x H): 9.10 inch (230mm) x 1.17 inch (110mm) x 2.17 inch (55mm)
• Efficiency: 91% nominal (load dependent)
• Input Voltage: 10.5-16VDC (down to 9V during operation)
• Stand by current: 80mA (nominal)
• Load Rating: 20A (continuous), Peak Load is 125%
• Max Operating Temperature: 122° F (50°C)
• Mounting Method: Screws (vertical or horizontal surface)
• Install Location: Dry loaction, vertical or horizontal
• Ingress Protection: IP40
• Class: B
• Electrical Protections: Transients, overload/short circuit, over temperature, over voltgae, reverse polarity, and more...
• Certifications & Compliance: CE-EMC, ROHS, Australian C-Tick
• Manufacturer: InterVolt
• Warranty: 2 Years
