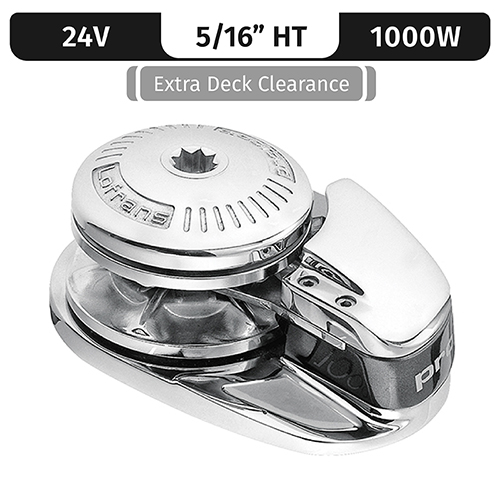

Project 1000/x2, 24vdc, 1000w Low-profile, Long Shaft, 5/16"ht Gypsy - Lw7921l/1x-5/16

Project 1000/x2, 24vdc, 1000w Low-profile, Long Shaft, 5/16"ht Gypsy - Lw7921l/1x-5/16

The Project 1000 features a high torque series-wound electric motor that delivers immediate lifting power and deployment speed. The Lofrans purpose built gearbox has a built in manual over-ride system in case an electrical problem were to arise. Lofrans provides a clutch/over-ride handle to make clutch adjustments or to hand crank the ground tackle onboard in an emergency. The handsome luxury chrome finish will enhance the look of any vessel.

Standard Equipment:

• Rope/Chain Management System
• Watertight Control Box, (2)
• Covered Footswitches
• Manual Override Clutch Handle

The Project 1000 is available in a variety of different versions for you to choose from. There are two primary styles: Low-Profile and Capstan. Within each style, there are further choices of voltage and deck thickness.

Replaces old item number LW7921LP/1XDC

Features

• Topworks Styling: Contemporary styling looks great on any foredeck
• Chromed Bronze Topworks: Mirror-like finish is durable and corrosion resistant
• Simplified Installation: Mainshaft and chainpipe holes are the same diameter and can be conveniently cut with hole saw
• Finger Design: Aft-facing stainless pressure finger ensure a smooth trouble-free transition from rope to chain during deployment and retrieval
• High-Speed Gearbox: 52:1 gearbox ratio retrieves the ground tackle at a more efficient speed
• Payout @105 ft/min

Specifications

• Motor Wattage: 1000W
• Version: Low Profile w/ extra deck clearance
• Finish: Chromed Bronze
• Working Load: 220 lbs (100kg)
• Payout Speed: 105 ft./min.
• Retrieval Speed @ No Load: 79 ft/min
• Retrieval Speed @ Working Load: 52 ft/min
• Deck Thickness: 4-5 in. (will accomodate thinner decks if shimmed)
• Amperes @ No Load: 70
• Amperes @ Working Load: 110
• Approximate Ship Weight (lbs): 52
