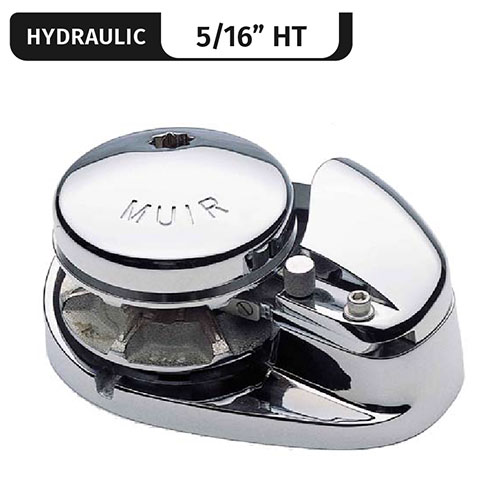

Storm Vr2200, Stainless Steel, Hydraulic, Low- Profile, Vert. Rope/chain Windlass F/ 5/16"ht/bbb - M2200lh-5/16h

Storm Vr2200, Stainless Steel, Hydraulic, Low- Profile, Vert. Rope/chain Windlass F/ 5/16"ht/bbb - M2200lh-5/16h

Standard Equipment:

• Two (2) Covered Footswitches
• Watertight Dual Direction Solenoid Box
• Rope Chain Management System
• Clutch Handle

Replaces old item number MSS2200RHYE

Features

The Self-Aligning QuickFit Gearbox Coupler allows the gearbox and motor to be installed directly onto the shaft in any radial position and alleviates installation problems due to uneven deck thickness. This is helpful when installing a windlass onto a deck with any camber to the deck surface. QuickFit connection simplifies installation.

Specifications:

• Clearance Items: Yes
• Manufacturers Part No: M2200LH-5/16H
• Finish: 316 Stainless Steel
• Version: Low-Profile/Hydraulic
• Warranty: 5 years
• Vessel Length: 40-50 ft (12-15m)
• Hydraulic Pressure: 1450psi
• Hydraulic Flow: 4 gal/min (15L/min)
• Standard Equipment: RCMS, Footswitch, Handle
• Max Load: 2200 lb (1000 kg)
• Work Load: 550 lb (250 kg)
• Max Line Speed: 50 ft/min (15 m/min)
• Manual Override System: Optional
• Mirror Image Windlasses: Available.
• Approximate Ship Weight (lbs): 49
