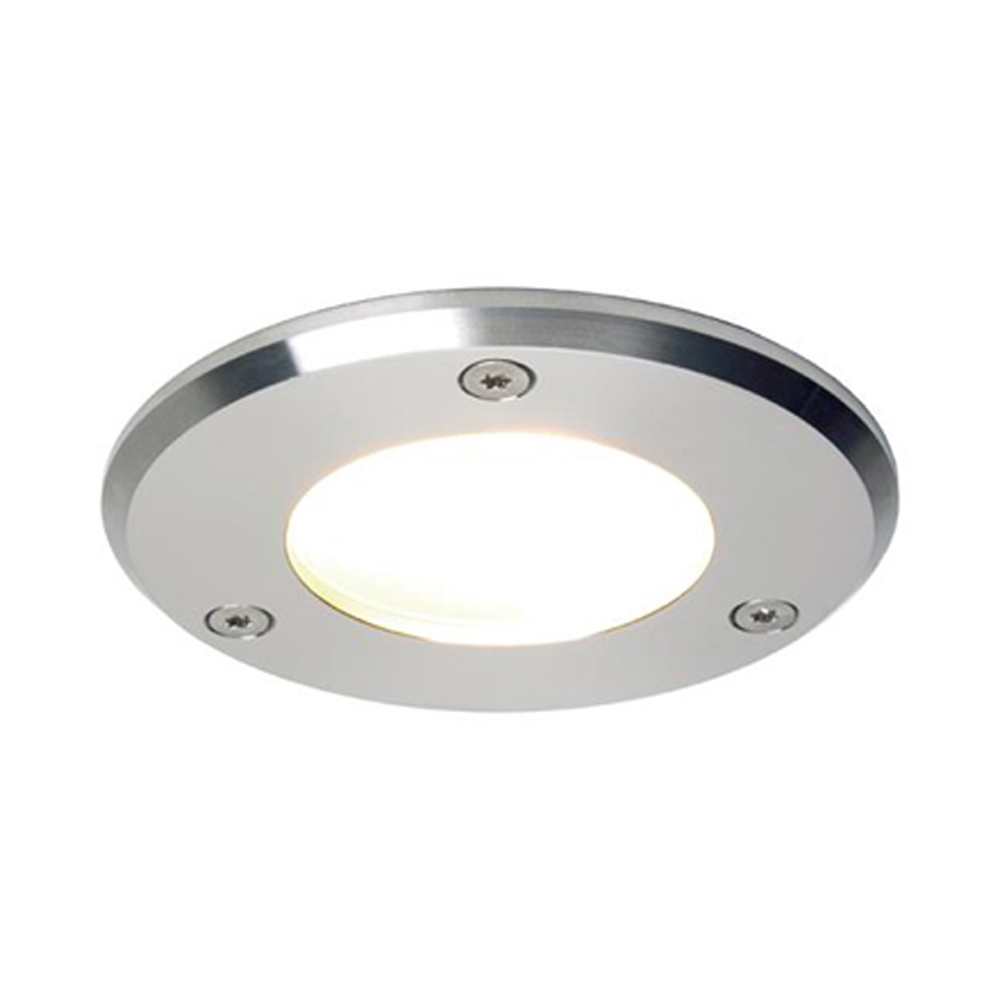

Marine Downlight - Emden Medium LED, Stainless Steel, Warm, 10-30VDC

• Marine Downlight - Emden Medium LED, Stainless Steel, Warm, 10-30VDC
• Emden Medium LED, Stainless Steel, Warm, 10-30VDC, Master (Dimmable), IP67
• A robust precision made LED downlight fixture built for harsh environments.
• This model from the Emden family is a mid-sized LED down light fixture with light output equal to a 25W halogen. It also has full dimming capability when wired to any N/O momentary switch. Add up to 15 medium or large "slave" Emden models (see model ILPB23303105 or ILPB23304015) to complete your dimmed circuit. Engineered to the highest standards and milled from marine grade 316 stainless steel, Emden will provide years of maintenance free top performance. Completely sealed from the elements, Emden may be installed in areas where water exposure is the norm. Emden's low profile bezel edge and high polish finish provide a style element that will surely be appreciated by the meticulous yacht owner and his/her guests.

Features:

• Machined 316 stainless steel construction
• Integrated 10-30VDC constant current LED driver
• Full dimming when paired with Emden Master (see ILPB23303105 or ILPB23304105)
• Pleasing wide-angle warm white illumination

Specifications:

• Trim Ring (Bezel) Finish/Material: Polished stainless steel
• Housing Finish/Material: Anodized aluminum/AISI 316 stainless steel
• Lens Material: Frosted glass
• Trim Ring (Bezel) Dimensions: 3.35 inch (85mm)
• Cut-Out Dimensions: 2.36 inch (60mm)
• Recessed Depth: 0.67 inch (17mm)
• Input Voltage: 10-30VDC
• Power Consumption: 3W
• Driver: Integrated
• Output Color: Warm white
• Luminous Flux: 175 lm
• Correlated Color Temperature (CCT): 3000K
• Color Rendering Index (CRI): 85
• Beam Angle: 100°
• Lifetime Hours: 50000
• Dimmer Compatibility: Integrated
• Dimmer Control Interface: N/O momentary switch
• Mounting Method: Screws
• Ingress Protection: IP67
• Class: F-Rated, Class III
• Electrical Protections: Transients, reverse polarity
• Certifications & Compliance: CE, ROHS
• Manufacturer: Prebit - Germany
• Warranty: 3 Years / 1 Year Finish

ATTENTION CALIFORNIA RESIDENTS

WARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
