Marine Downlight - Leer LED Downlight, 10-30VDC

• Marine Downlight - Leer LED Downlight, Chrome, 10-30VDC
• Slave (dimmable with Master), IP20

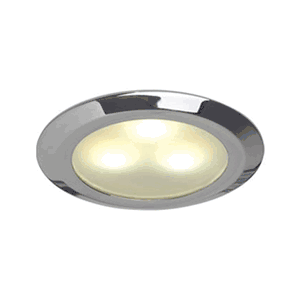

• The Leer recessed downlight is offered in chrome, matte chrome, or gold plated brass. The housing is a mere 0.70" deep so it is a good choice for ceilings with limited dept behind the headliner. It may be wired to any remote on/off switch or when wired to the Leer "Master" (model ILPB22943105) it can be fully dimmed. A maximum of 15 slaves may be paired with any master unit. Control (i.e. dimming) of the Leer slaves can be done right at the "master" or via a remotely installed single throw momentary switch.

Features:

• Bright warm white illumination
• Wide 90° viewing angle
• Integrated 10-30VDC constant current LED driver
• Full dimming when paired with a master (see ILPB22943105)

Specifications:

• Housing Finish/Material: Chrome Plated Brass
• Trim Ring (Bezel) Dimensions: 2.76 inch (70mm) x 0.14 inch (3.5mm)
• Lens Material: Frosted acrylic
• Cut-Out Dimensions: 2.44 inch (62mm)
• Recessed Depth: 0.70 inch (18mm)
• Input Voltage: 10-30VDC
• Power Consumption: 3W
• Driver: Integrated, current-controlled
• Output Color: Warm white
• Luminous Flux: 175 lm
• Correlated Color Temperature (CCT): 3000K
• Halogen Equivalency: 20W
• Color Rendering Index (CRI): 85
• Beam Angle: 90°
• Lifetime Hours: 50000
• Dimmer Compatibility: See Leer Master (ILPB22943105)
• Dimmer Control Interface: N/O single throw momentary switch
• Mounting Method: Springs
• Install Location: Interior, ceilings
• Ingress Protection: IP20
• Class: Class III
• Electrical Protections: Transients, reverse polarity
• Certifications & Compliance: CE, ROHS
• Manufacturer: Prebit
• Warranty: 3 Years / 1 Year Finish
