Marine Downlight - Norden (Master) Bi-Color LED Spot, Warm White-Red
Chrome, 10-30VDC, IP20The Prebit Norden (Master) is a low voltage DC surface-mounted LED spot that allows the user to switch between warm white and red via built in switch. The switch is a micro "soft" switch that also provides infinitely variable dimming for both colors. The Norden (Master) unit can be wired as a stand alone unit or wired with up to 15 Norden (Slave) units for group functioning (color sequencing, dimming, on/off). This Master unit has a built in momentary switch and the entire group (of Slave units) are controlled from there. Or wire in unlimited remote momentary switches for control from any point in the room!

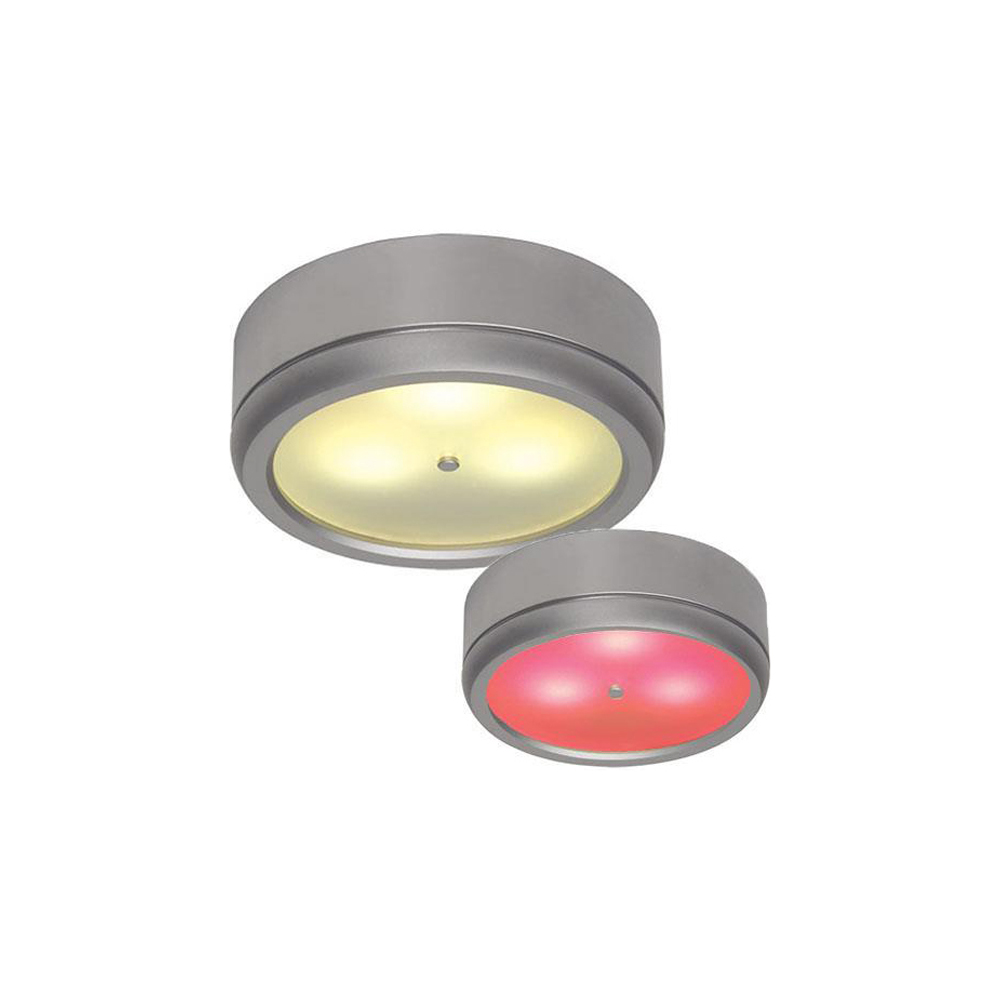

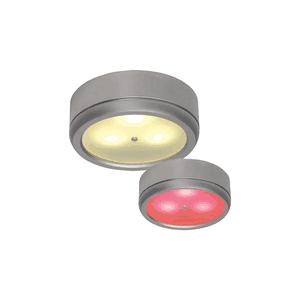

Image shows product in Matte Chrome

Features:

Surface mount design, no cut-out required
One Master controls on/off, color choice, and bi-color dimming of up to 15 Slave units
May be controlled with integral switch or via remotely wired momentary switches
UV resistant satin-finish acrylic lens

Specifications:

Housing Finish/Material: Shiny Chrome/Plastic & Aluminum
Lens Material: Satin Acrylic
Base Dimensions: 2.36 inch (60mm) dia x 0.79 inch (20mm) ht
Dimensions: 2.36 inch (60mm) dia x 0.79 inch (20mm)
Integrated Switch: No
Input Voltage: 10-30VDC
Halogen Equivalency: 20W
Power Consumption: 3W
Driver: Integrated Constant Current
Output Color: Warm White/Red
Luminous Flux: 192 lms
Correlated Color Temperature (CCT): 3000K/Red
Color Rendering Index (CRI): 85
Beam Angle: 65dg
Lifetime Hours: 50,000 hrs. (L70)
Dimmer Control Interface: Integrated push-button switch and/or combined with unlimited remote switches
Dimming Range: 0-100%
Mounting Method: Screws
Install Location: Surface Mount
Ingress Protection: IP20
Class: III
Electrical Protections: Transient, Reverse Polarity
Manufacturer: Prebit
Warranty: 3 Years / 1 Year Finish
