Thruster, Ac, 240kg Thrust/250mm Tnl, Comp Prop 208-240vac 3-phase Input Power, Horizontal Mount - Sac240/250-c-2h

Thruster, Ac, 240kg Thrust/250mm Tnl, Comp Prop 208-240vac 3-phase Input Power, Horizontal Mount - Sac240/250-c-2h

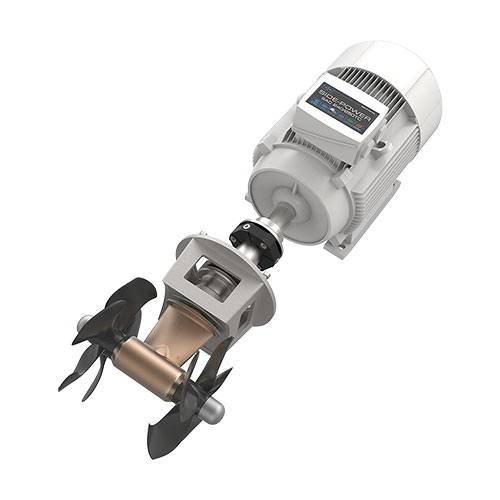

Sleipner SAC240 Thruster, 250mm (9.8") tunnel ID, 240 kg (530 lb) continuous thrust, 208-240 VAC 3-phase. Single phase version is available. Horizontal Mount Twin Counter-Rotating Bronze 5-blade "Q-Props" Sleipner's dual, counter-rotating "Q" props provide maximum efficiency, coupled with the streamlined profile of the gear-leg in a 16" tunnel to in a 10" tunnel. The dual props offer equal thrust in both directions, and the Proportional controller system with VFD provides not only smooth acceleration, but also provides the safety of a momentary delay when switching directions to avoid an impact load on the gears. A complete Sleipner engineered system allows full proportional control of the thruster and unlimited run time, all based on the S-Link plug and play system.  Learn more about Sleipner AC thruster systems.

Features

• Thruster controlled by S-Link digital bus based system
• High quality marine standard flexible motor coupling
• Gear leg made from seawater resistant bronze CNC machined in one process to ensure 100% correct tolerances, angles and measurements
• Oil filled gear leg with header tank and venting to ensure to ensure long life
• Marine grade seals with protective lip, mechanically protected by specific propeller hub design
• Hardened and ground precision spiro-conical gears
• Propeller shafts with double ball bearings
• Anode protection directly on propeller for easy change
• VFD, EMC Filter, PDC 301  Proportional Controller included

Specifications:

• Manufacturers Part No: SAC240/250-C-4-H
