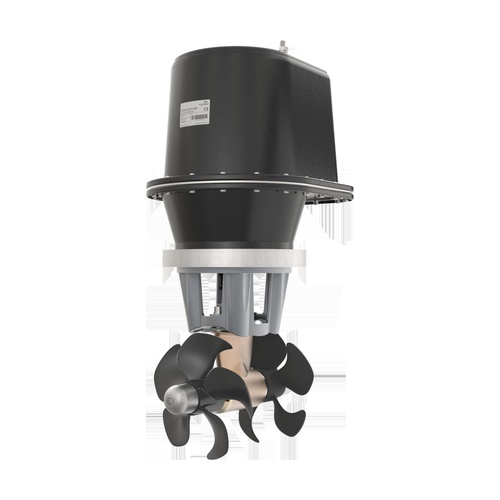

se120/215t-24ip, 24v, Twin Props 264 Lbs Of Thrust, Ignition Protected - Se120/215t-24ip
Click image to enlarge

se120/215t-24ip, 24v, Twin Props 264 Lbs Of Thrust, Ignition Protected - Se120/215t-24ip

  • Item No.: SE120-215T-24IP
  • Manufacturer: Imtra Marine Products
Regular price: $8,234.00
Sale price:$6,444.00
Qty.:
Other Variations:
Side-Power Bow Thruster Single Prop ThrusterSide-Power Bow Thruster Single Prop Thruster | $1,422.00Side-Power Bow Thruster, 12V, Single Prop ThrusterSide-Power Bow Thruster, 12V, Single Prop Thruster | $4,464.00Side-Power Bow Thruster SE100/185T-12IP, 12V, Twin Props ThrusterSide-Power Bow Thruster SE100/185T-12IP, 12V, Twin Props Thruster | $5,868.00Side-Power Bow Thruster SE100/185T, 12V, Twin Props Thruster - SE100-185T-12VSide-Power Bow Thruster SE100/185T, 12V, Twin Props Thruster - SE100-185T-12V | $4,203.00Side-Power Bow Thruster SE100/185T, 24V, Twin Props ThrusterSide-Power Bow Thruster SE100/185T, 24V, Twin Props Thruster | $4,203.00
Pre-Sales questionnaire before buying a bow or stern thruster
Contact us Now
  • Description

se120/215t-24ip, 24v, Twin Props 264 Lbs Of Thrust, Ignition Protected - Se120/215t-24ip

Available While Supplies Last, see item number: E120/215T-24V

Side-Power SE120/215T-24IP Thruster (Sealed Gearleg) with IP Housing, 24V, ignition protected, 215mm

Other items to consider when purchasing a new thruster:

  • Bow Tunnel or Stern Tunnel
  • Control Panels and Remote Controls
  • AutoMainswitch, Battery Disconnect, Fuse & Fuseholder
  • 4-Wire Harnesses (when not using AutoMainswitch)
  • 5-Wire Harnesses (for use with AutoMainswitch)

Ignition Protected Features:

  • Certified and individually tested to ISO 8846 Ignition Protected standards
  • Waterproof (not recommended for fully submerged mounting)
  • Stainless cable seals
  • Secondary overheat switch secures general temperature in housing
  • Rugged plastic housing in VO self-extinguishing material
  • Supplied with 3.28' (1m) main power cables and bulkhead mount terminals for easy and safe power supply hook-up
  • Supplied with 32.8' (10m) control cable with connector for connection outside of ignition protection area

Features

  • Certified and individually tested to ISO 8846 Ignition Protected standards
  • Waterproof (not recommended for fully submerged mounting)
  • Stainless cable seals
  • Secondary overheat switch secures general temperature in housing
  • Rugged plastic housing in VO self-extinguishing material
  • Supplied with 3.28' (1m) main power cables and bulkhead mount terminals for easy and safe power supply hook-up
  • Supplied with 32.8' (10m) control cable with connector for connection outside of ignition protection area

Specifications:

  • Clearance Items: Yes
  • Thrust @ 21VDC: 264 lbs (120 kg)
  • Thrust @ 24VDC: 306 lbs (139 kg)
  • Typical Boat Size: 42-60' (13-18 m)
  • Power @ 21V: 8.55 hp (6.4 kw)
  • Recommended Fuse Size: 325 Amps (SMANL325)
  • Fuse Size: 325 Amp
  • Minimum Battery Capacity: 760 CCA SAE
  • Approximate Ship Weight (lbs): 87
