Srlp100 Retractable Thruster 90deg Motor 24v Proportional 100kg/220lb Thrust, No Frame - Srlp100/185t-2v

Regular price: $18,009.00

Sale price:$14,094.00

Qty.:

Other Variations:

Need Help!!

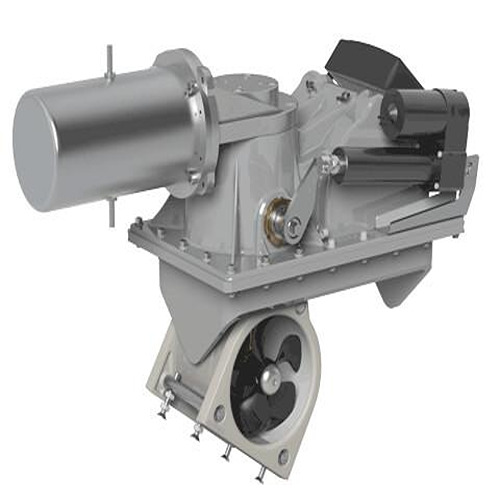

Srlp100 Retractable Thruster 90deg Motor 24v Proportional 100kg/220lb Thrust, No Frame
SRLP100 Retractable Thruster 90Deg Motor 24v, Proportional 100KG/220LB Thrust, No frame
Side-Power developed the SRLP-series of speed control vertical retractable thrusters to meet the needs of boat owners who do not have the space to fit a tunnel through the boat's hull. Side-Power's range of proportional speed control DC thrusters allow you to select the power you need for precise boat movements in any weather and sea conditions. The unique "hold" feature allows you to keep the boat in position at dock or in locks. Can be used in either bow or stern thruster applications. The SRLP100/185T is one part of a complete Side-Power thruster system, including tunnel, controls, cables, fuses and battery switches. This model requires a Side-Power supplied frame for installation in composite hulls or a self-made frame for aluminum or steel hulls.
Contact your local Side-Power representative for a system tailored to your needs.
Features & Benefits
Plug and Play S-Link two-way communication control system
Horizontal motor mount for even more compact install
Fast deployment time
Hatch deploys straight out of hull for minimal cutout gaps, creating minimal drag when thruster is retracted
Pressure sensor on door automatically retracts thruster when boat speed is too high
Thruster lock out: thruster is disabled when fully or partially retracted

Performance

Propulsion technology know-how maximizing amount of thrust from the system
Lightweight composite propellers reduce work needed to get up to speed and stop rotation
Streamlined gear housing reducing turbulence in the tunnel and maximizing flow

Installation

Compact sized units to reduce the amount of interior volume needed
Simple Plug and Play wiring
Easily accessible battery terminals
Fast and safe propeller mounting with lock nut
GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
Easy access zinc anodes allowing quick and simple changing
Sealed gearleg so no messy oil fill-ups needed during installation

Safety and Reliability

Overheat thermal switch on electric motor stops operation, preventing damage to the electric motor
Mechanical protection of drive gear through flexible coupling between gearleg and motor
Self-locking high pressure contacts extend solenoid life and improve current conduction
Extra insulation to help prevent wear and heat damage of internal wiring
Non-conductive and self-extinguishing solenoid covers
Control panels have child-safe on system and timed shut down from last use
2 Year limited warranty
