  • Description

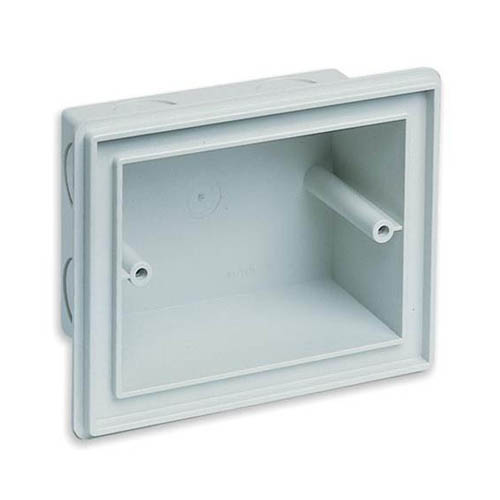

  • Vimar Idea 3-Module Flush Mount Box for Idea/8000 Series 3M
  • Vimar 3-Module Flush Mount Box for Idea 8000 Series, 3M, IP55 Covers, Grey
  • Vimar flush-mount junction box, 3 module, for Idea/8000 IP55 covers, grey. Compatible with VM13731.Q, VM13731.Q.A, VM13733.Q, VM13733.Q.A

Features:

  • Rubber cable grommet
  • Additional lateral knockouts
  • Heat & fire resistant (Glow Wire Test: 650 dg C)

Specifications:

  • Housing Finish/Material: Reinforced Technopolymer (Grey)
  • Dimensions: 4.96" (126mm) x 4.02" (102mm) x 2.83" (722mm)
  • Number of Modules: 3
  • Max Housing Temperature: 158 dg. F (70 dg C)
  • Box Compatibility: Idea Series, 8000 Series
  • Mounting Method: Screws
  • Install Location: Dry or Damp Locations
  • Ingress Protection: IP55
  • Certifications and Compliance: CE-LV, CE-EN 60670-1
  • Manufacturer: Vimar
  • Warranty: 3 years
