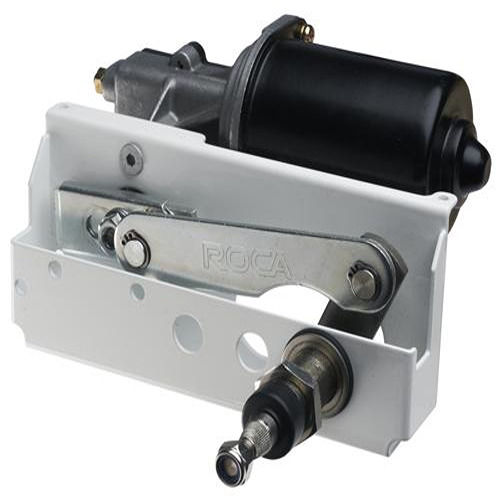

Marine W25 Wiper Motor, 12V, 25Nm, 28mm/1.1 in.-RC531015

• W25 Wiper Motor, 12V, 25Nm, 28mm/1.1 in., Bulkhead Mount
• The Roca W25 wiper motor is made for the toughest conditions.
• With a 25Nm torque and a strong drive system it powers up to 750mm / 35 arms and blades.
• The sweep angle is easily adjusted from 45-110 for maximum visibility.
• Two speeds: Slow 40 sweep/min and fast 60 sweep/min.
• Dynamic parking, can easily be changed from Left to Right.

Features of the W25 Wiper System:

• Single tapered drive shaft for secure motor/arm connection
• External mount idler shaft for pantograph option
• Stepless sweep angle adjustment
• Sweep angle Adjustable from 45-110
• Insulated ground for installation on metal, GRP and wooden boats
• CE approved; EMC protected

Benefits:

• Easy installation and wiring
• Choice of arm finish to fit surroundings perfectly
• Wide range of arms and blades to fit most any window
• Efficiently wipes big windows (maximum reach of 45 in.)
• Quality system at an affordable price
• 3 year warranty on motors & arms; 1 year for blades

Specifications:

• Voltage: 12V
• Power: 25Nm
• Bulkhead Thickness (mm): 28mm
• Bulkhead Thickness (in.): 1.1 in.
• Sweep Angle Adjustment: 45-100 degrees Slot, Stepless adjustable

ATTENTION CALIFORNIA RESIDENTS

WARNING: Cancer and Reproductive Harm

Click here for Bulkhead Mounting Details

Click here for Arm Attachment 1
